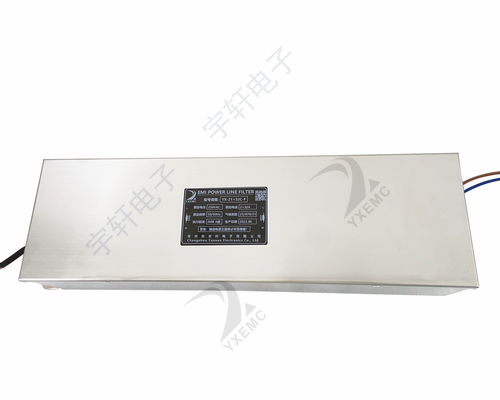

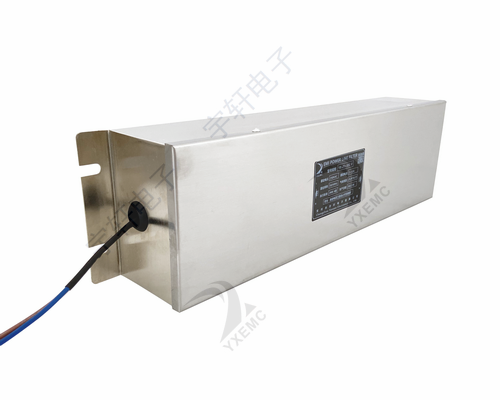

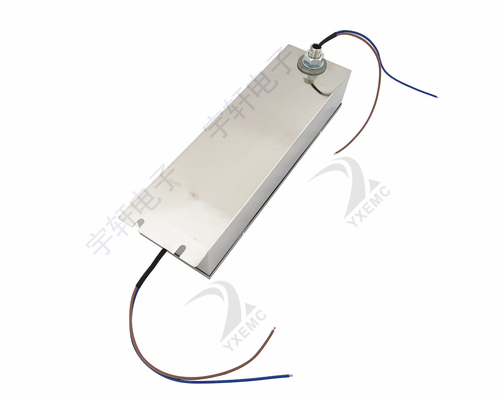

暗室EMC直流濾波器

● 含差模線圈，每線獨立，
● 傳導、射頻干擾抑制能力均佳。
● 可用單、雙線濾波器組合成單相、
● 三相濾波器使用，
● 也可多線并聯擴展電流。

0519-83435607

立即咨詢

產品詳情

特點 Features

● 含差模線圈，每線獨立，傳導、射頻干擾抑制能力均佳。

With differential mode coil, each line is independent, and the capability of EMI suppression is good.

● 可用單、雙線濾波器組合成單相、三相濾波器使用，也可多線并聯擴展電流。It can be used as single-phase and three-phase filters by combining single and double line filters, and it can also expand the current in parallel with multiple lines.

應 用 Application

● 電波暗室、民標測試實驗室、軍標測試實驗室等設施的專用配套，能有效的抑制輻射干擾。

Special supporting facilities of electric wave dark room, civil standard test laboratory, military standard test laboratory

and other facilities can effectively inhibit radiation interference.

● 機房、方倉等的屏蔽設施電源濾波。Power filtering of shielding facilities in machine room, square warehouse, etc.

● 流水線、變流變頻設備、凈化電源、局放試驗等工業設施、設備的高質量電源濾波。

High quality power filter for assembly line, converter and frequency conversion equipment, purified power supply, partial discharge test and other industrial facilities and equipment.

性能指標 Characteristcs

額定電壓Rated voltage	單相Single phase 250VAC（線-線/線-地）	三相three-phase 440/250VAC（線-線/線-地）	單相Single phase 115VAC 三相three-phase 200/115VAC	MAX1200VDC
工作頻率 Operating Frequency	50/60Hz		400Hz	/
耐壓試驗 Test Voltage	1000VDC/2S（線-線） 1000VDC/2S（線-地） 3000VDC/2S			1.6Ur
氣候類別 Climate category	25/070/21
插入損耗insertion loss	100dB 9K~10GHz 可拓展至40GHz It can be extended to 40GHz

50/60Hz產品型號表 Filter Table

額定電流A Rated curren	導線 wire	單相型號 Single phase model	波導螺桿 Waveguide screw	外形尺寸Fig. Outline Drawing	三相型號 three-phase model	波導螺桿 Waveguide screw	外形尺寸Fig. Outline Drawing
10	14AWG	YX-21×10C-F	M24	1	YX-41×10C-F	M33	8
16	12AWG	YX-21×16C-F	M24	2	YX-41×16C-F	M33	9
32	10AWG	YX-21×32C-F	M24	2	YX-41×32C-F	M33	9
50	8AWG	YX-21×50C-F	M24	3	YX-41×50C-F	M33	5
60	6AWG	YX-21×60C-F	M33	4	YX-41×65C-F	M33	5
80	6AWG	YX-21×80C-F	M33	4	YX-41×80C-F	M42	10
100	4AWG	YX-21×100C-F	M33	5	YX-41×100C-F	M42	10
150	2AWG	YX-21×150C-F	M42	6	YX-41×150C-F	M42	10
200	1/0AWG	YX-21×200C-F	M42	7	YX-41×200C-F	M48	11

外形尺寸圖 Outline Drawing : mm

Fig.1 (10A)

Fig.2~Fig.7 (16A~200A)

Fig.8~Fig.12 (10A~200A)

外形尺寸Fig.	A	B	C	D	E	F	G	H	I	J
2	503	153	101	M24	80	10	485	530	30	45
3	603	153	101	M24	80	10	585	630	30	45
4	603	153	101	M33	80	10	585	630	30	45
5	623	263	121	M33	180	10	590	650	45	45
6	623	263	121	M42	180	10	590	650	45	45
7	803	303	161	M42	200	10	750	830	60	45
8	483	263	121	M33	180	10	450	510	45	45
9	553	263	121	M33	180	10	520	580	45	45
10	723	323	161	M42	180	10	675	750	60	60
11	803	353	161	M48	200	10	750	830	60	58
